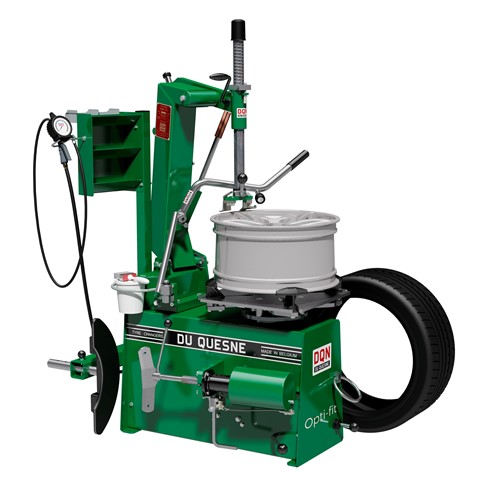

Opti-Fit


Ask it for the impossible !

High-quality tyre-changer for Run Flat, low profile tyres … and all other passenger vehicles.

REF : 210 OF

TYRE CHANGER OF +KIT RF +3D+MANO

View Leaflet Video

CHARACTERISTICS


-The unique tilting column
-The electromechanical mounting plate
-The profiled tools
-The RF arm
-The Trident
-The linear bead-breaker



SAFE AND POWERFUL BEAD-BREAKER

The powerful linear bead-breaker ( DQN feature): The new beadbreaker shovel with pre-adjustment is designed to maintain the desired position on the tyre. The linear motion helps to better visualize the trajectory and avoid contact between the rim and the shovel.



THE SMART COLUMN

With a unique concept, the Opti-fit’s tilting column uses opposite forces to push the mounting head away from the rim. Since no contact is made, you will rest assured that the job has been well done.



PROFILED MOUNTING HEAD

The positioning of the mounting head and the automatic adjustment of distance from the tool to the rim is done in a single movement. The design of the tools of the mounting head minimizes stress on the tyre to its lowest level and allows the mounting of tyres on rims with prominent sail.



UNEQUALLED CLAMPING

The electromechanical mounting plate (DQN Patent) equipped with ‘‘Smooth Grip’’ claws ensure you an incomparable quality of external clamping, automatic centering and perfect horizontal positioning.



IDEAL FOR LOW PROFILE AND RUNFLAT TYRES

RunFlat arm (DQN patent): It is a multi-purpose arm that pushes the bead into the groove of the rim and allows the dismounting spacer to be placed. It helps lift the tyre i n o rder t o fi nd t he second bead during the dismounting process. It is superbly efficient when used together with the trident for the mounting of all types of low profile and RunFlat tyres. Trident (DQN patent): Used together with the RF arm, this mounting accessory requires a mere second to be placed and allows the mounting of the most difficult tyres, in no time.



SPECIFICATIONS


MODEL Opti-fit
RIM Ø 10" - 23" (26")*
MAX WHEEL Ø 96 cm
MAX TYRE WIDTH 32,5 cm (36 at the bead breaker)
MAX RIM WIDTH 2" - 12" (13" at the bead breaker)
AIR PRESSURE 8 - 15 bar
POWER SUPPLY 230/400V 50Hz 3Ph
MOTOR POWER 0,95kW
WORK AREA 180 x 150 cm
MIN DIMENSIONS (mm) L 1040 x W 770 x H 1480
MAX DIMENSIONS (mm) L 1330 x W 1050 x H 1900
WEIGHT 237 kg
