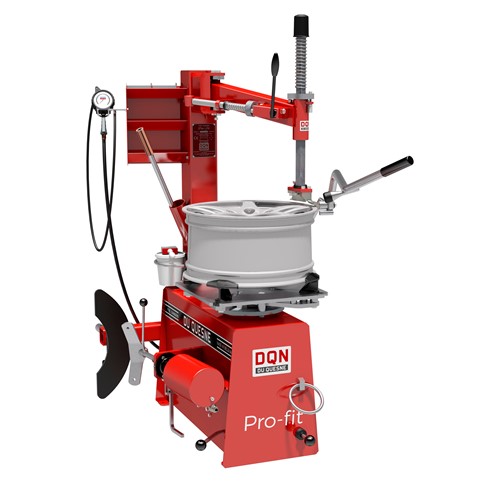

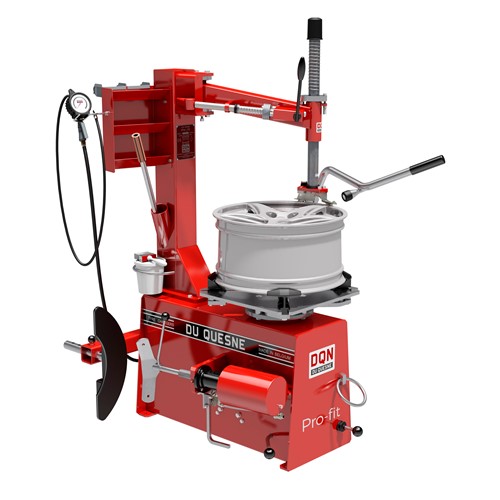

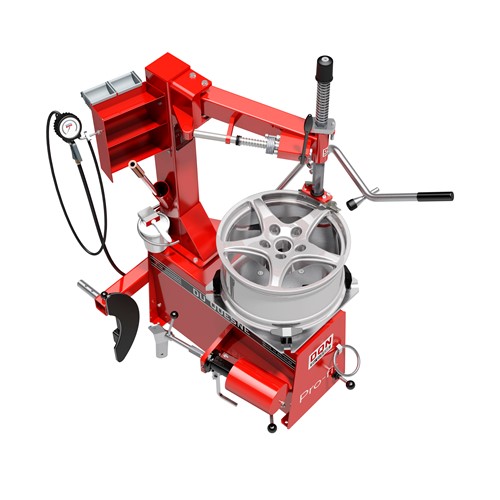

Pro-Fit


Keep up the pace !

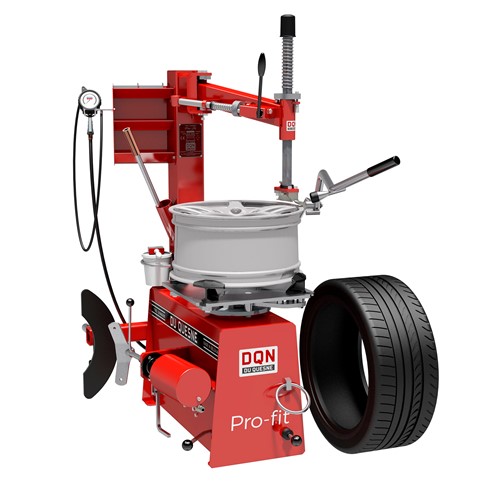

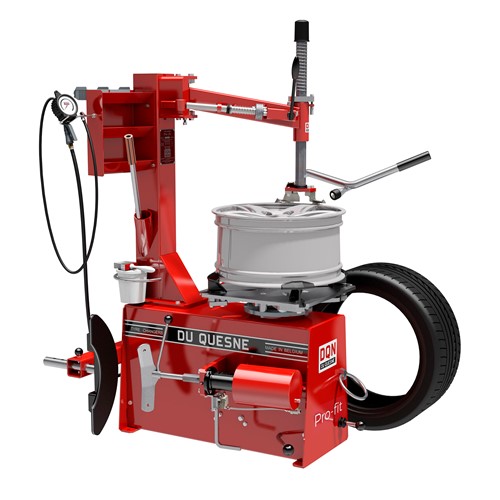

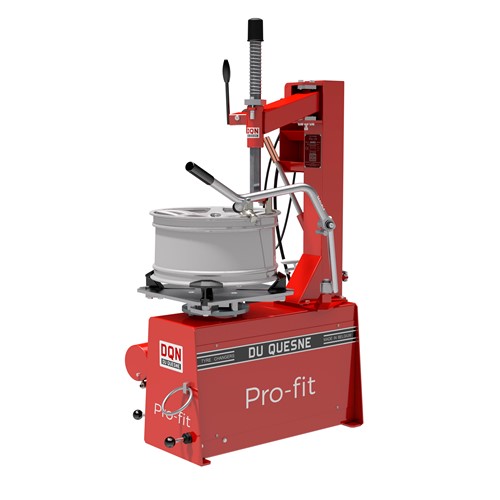

High-quality tyre-changer for Run Flat, low profile tyres … and all other passenger vehicles.

REF : 110PFC

TYRE CHANGER PF +KIT RF +3D+MANO

View Leaflet Video

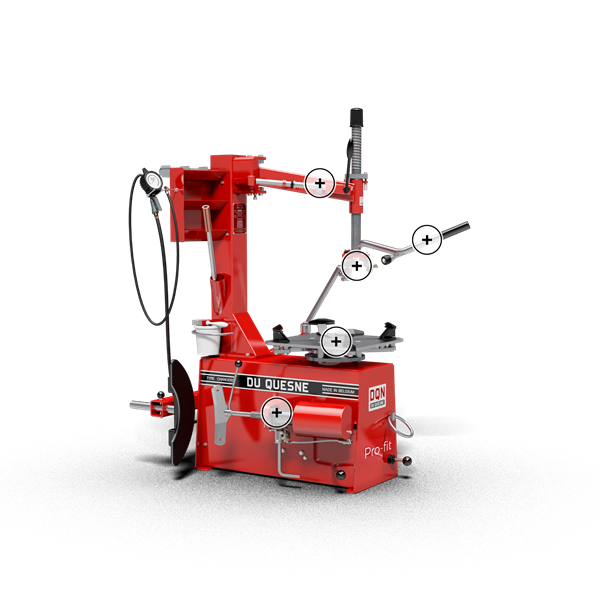

CHARACTERISTICS


-The extra-rigid swivel arm
-The electromechanical mounting plate
-The profiled tools
-The RF arm
-The Trident
-The linear bead-breaker

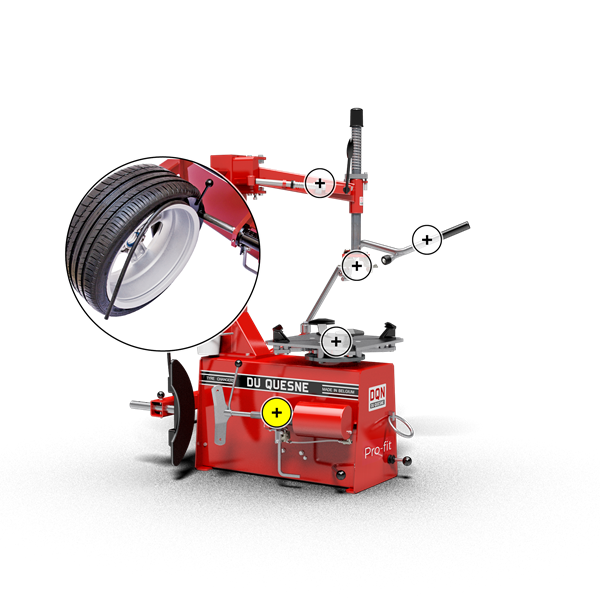

SAFE AND POWERFUL BEAD-BREAKER

The powerful linear bead-breaker (DQN feature): The new beadbreaker shovel with pre-adjustment is designed to maintain the desired position on the tyre. The linear motion helps to better visualize the trajectory and avoid contact between the rim and the shovel.



THE INFLEXIBLE ARM

The Pro-fit is equipped with a swivel arm of unmatched rigidity that keeps the mounting head away from the rim at all times.

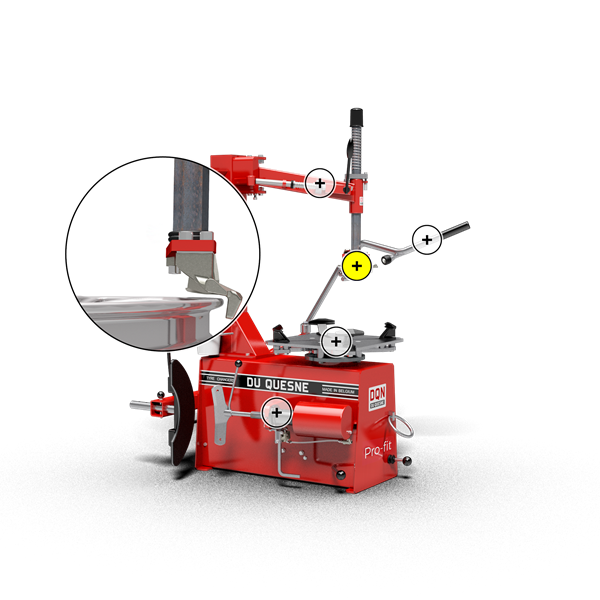

PROFILED MOUNTING HEAD

The positioning of the mounting head and the automatic adjustment of distance from the tool to the rim is done in a single movement. The design of the tools of the mounting head minimizes stress on the tyre to its lowest level and allows the mounting of tyres on rims with prominent sail.



UNEQUALLED CLAMPING

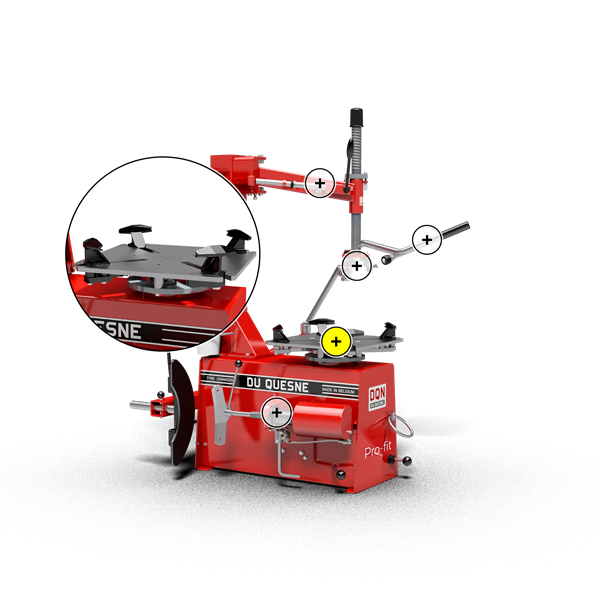

The electromechanical mounting plate (DQN Patent) equipped with ‘‘Smooth Grip’’ claws ensure you an incomparable quality of external clamping, automatic centering and perfect horizontal positioning.

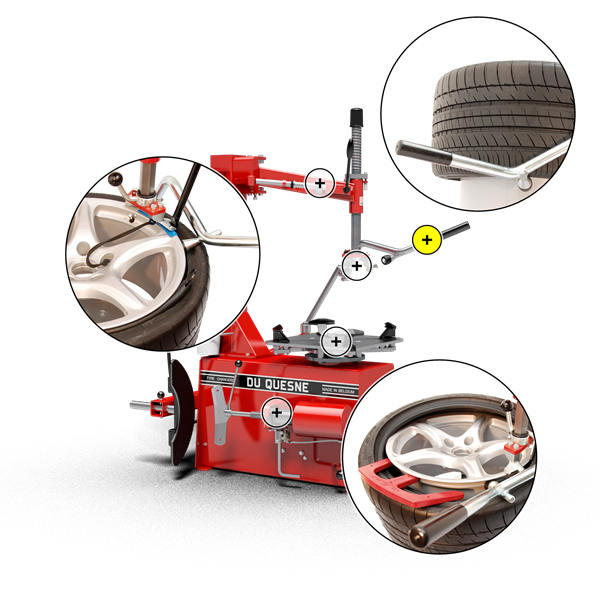

IDEAL FOR LOW PROFILE AND RUNFLAT TYRES

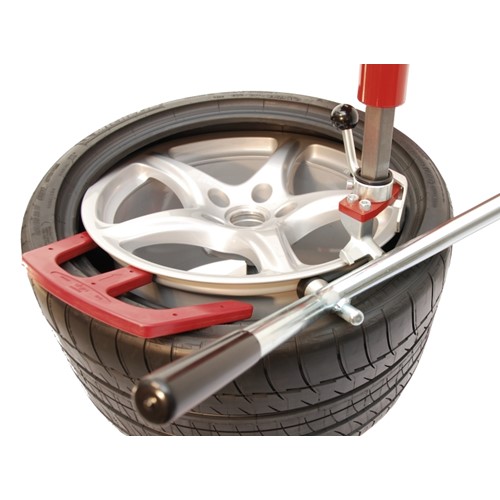

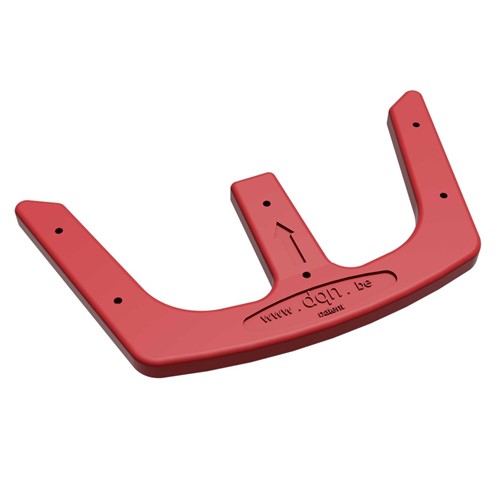

RunFlat arm (DQN patent): It is a multi-purpose arm that pushes the bead into the groove of the rim and allows the dismounting spacer to be placed. It helps lift the tyre i n o rder t o fi nd t he second bead during the dismounting process. It is superbly efficient when used together with the trident for the mounting of all types of low profile and RunFlat tyres. Trident (DQN patent): Used together with the RF arm, this mounting accessory requires a mere second to be placed and allows the mounting of the most difficult tyres, in no time.



SPECIFICATIONS


MODEL Pro-fit
RIM Ø 10" - 23" (26")*
MAX WHEEL Ø 96 cm
MAX TYRE WIDTH 31,5 cm (36 at the bead breaker)
MAX RIM WIDTH 2" - 11" (13" at the bead breaker)
AIR PRESSURE 8 - 15 bar
POWER SUPPLY 230/400V 50Hz 3Ph
MOTOR POWER 0,95kW
WORK AREA 150 x 150 cm
MIN DIMENSIONS (mm) L 920x W 970 x H 1450
MAX DIMENSIONS (mm) L 1200 x W 1030 x H 1770
WEIGHT 217 kg
